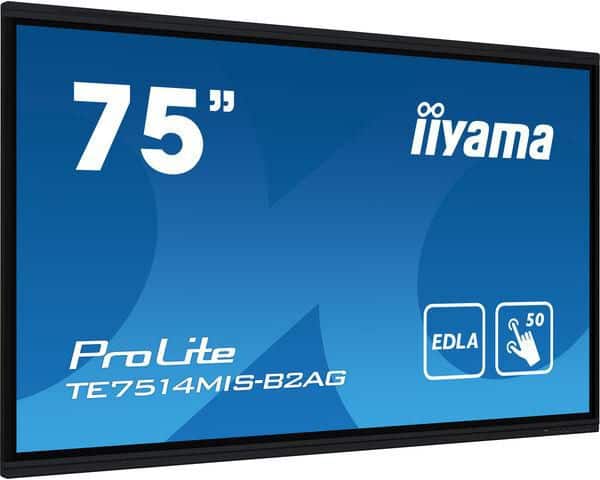

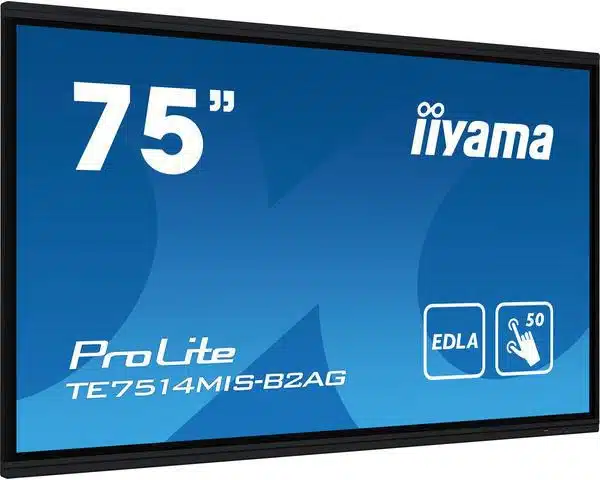

Specifikationer for TE7514MIS-B2AG
Audio
Built-in speaker(s)
YesNumber of built-in speakers
4RMS rated power
52 WBattery
Battery Type
ALKALINE – Alkaline Batteries – No restictionsCertificates
Certification
CB, CE, TÜV-Bauart, EAC, RoHS, WEEE, REACHComputer system
Built-in processor
YesComputer system
YesInternal memory
8 GBOperating system installed
AndroidOperating system version
13Processor architecture
ARM Cortex-A76+Cortex-A55Processor cores
4Processor manufacturer
ARMDesign
Bezel width (bottom)
4,1 cmBezel width (side)
1,65 cmBezel width (top)
1,65 cmOrientation
HorizontalPanel mounting interface
800 x 400 mmPlacement supported
IndoorProduct colour
BlackProduct design
Digital signage flat panelScreen shape
FlatVESA mounting
YesDisplay
Active display area (W x H)
1650 x 928 mmContrast ratio (dynamic)
5000:1Contrast ratio (typical)
5000:1Display brightness
435 cd/m²Display diagonal
75 ”Display diagonal (metric)
189,3 cmDisplay number of colours
1.07 billion coloursDisplay resolution
3840 x 2160 pixelsDisplay technology
LCDGlass thickness
3 mmHaze rate
25 %HD type
4K Ultra HDHorizontal scan range
30 – 135 kHzMulti-touch
YesNative aspect ratio
16:9Number of simultaneous touchpoints
50Number of simultaneous touchpoints (Android)
40Panel type
VAPixel pitch
0.43 x 0.43 mmResponse time
6,5 msTouchscreen
YesTouchscreen technology
PureTouch-IRViewing angle, horizontal
178 °Viewing angle, vertical
178 °Legal Information
UNSPSC Code (Icecat)
43211902Operational conditions
Operating temperature (T-T)
0 – 40 °CStorage temperature (T-T)
-20 – 60 °CPackage dimensions
Depth (package,cm)
186,3 cmGross Weight (Package, kg)
62,5 kgHeight (package,cm)
114,8 cmWidth (package,cm)
22,5 cmPackaging content
Batteries included
YesCables included
AC/HDMI/USBRemote control included
YesPerformance
HDCP
YesMean time between failures (MTBF)
50000 hNumber of OSD languages
14On Screen Display (OSD)
YesOn Screen Display (OSD) languages
CAT/Czech/Danish/Dutch/English/Finnish/French/German/Italian/Polish/Russian/Spanish/SwedishOperating hours (hours/days)
24/7Purpose
UniversalPorts & interfaces
DisplayPort version
2.1DisplayPorts in
1DisplayPorts quantity
1Ethernet LAN
YesEthernet LAN (RJ-45) ports
2Ethernet LAN data rates
10/100/1000 Mbit/sHDMI input ports quantity
4HDMI output ports quantity
1HDMI ports quantity
5HDMI version
2.0Infrared data port
YesUSB connector type
USB Type-CUSB port
YesUSB ports quantity
8USB Power Delivery (USB PD)
YesUSB Power Delivery up to
100 WWi-Fi
YesWi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)Power
AC input frequency
50/60 Hz
AC input voltage
100 – 240 V
Energy consumption (SDR) per 1000 hours
197 kWh
Energy efficiency class (SDR)
G
Energy efficiency scale
A to G
Power consumption (off)
0,3 W
Power consumption (standby)
0,5 W
Power consumption (typical)
209 W
