| Peak output power | 340 W |
| Power rating | 240 W |
| Power rating at 4 Ω | 240 W |
| Power rating at 100 V | 240 W |
| Channels | 5 |
| Zones | 5 |
| Inputs | 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line),0.3 V/15 kΩ (line), 0.775 V/10 kΩ (preamplifier) |
| Frequency range | 55-16,000 Hz |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 70 dBA (mic),> 80 dBA (line) |
| THD | < 1% |
| Phantom power | 17 V |
| Power supply | ˜ 230 V/50 Hz/630 VA,DC 24 V/27 A |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 630 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 27 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 352 mm |
| Rack units, RU | 3 |
| Weight | 14 kg |

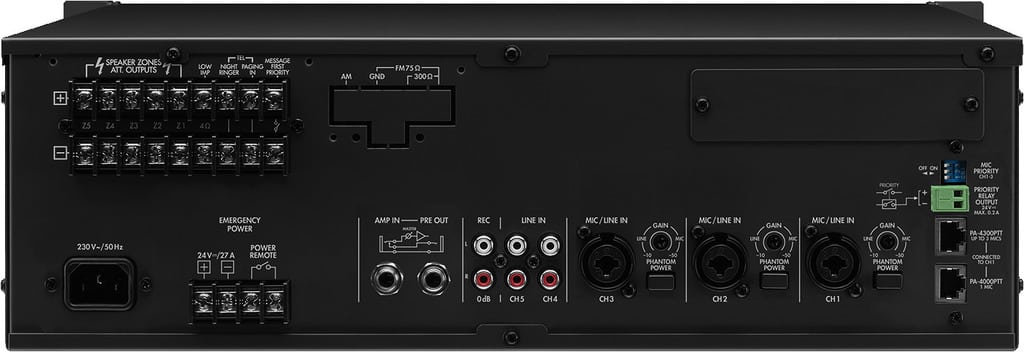

| Connections | 3 x combo 6.3 mm/XLR (mic/line inputs),2 x RCA L/R (line inputs), 2 x RJ45 (push-to-talk microphone), screw contacts (telephone system), 1 x 6.3 mm jack (preamplifier), 1 x 6.3 mm jack (ext. amplifier), 1 x RCA L/R (record), screw contacts (speakers) |
| Packaging dimensions (W x H x L) | 0.48 x 0.22 x 0.54 m |
| Gross weight | 16.44 kg |
| Net weight | 14.46 kg |
| EAN code | 4007754143133 |
| Net weight | 14.46 kg |
