IMG TXS-646

Pris ekskl. moms: 3.295,00 kr.
Pris inkl. moms: 4.118,75 kr.
-
+

Specifications

Descriptionreceiver unit
Carrier frequency range672.000-696.975 MHz
Audio frequency range30-18,000 Hz
Channels4
THD< 0.5%
Dynamic range100 dB
RF S/N ratio105 dB
Admiss. ambient temp.0-40 °C
Audio signal receiver350 mV/600 Ω (jack)25 mV/600 Ω (XLR, bal.)
Power supply receivervia encl.plug-in power supply
Width receiver482 mm
Height receiver45 mm
Depth receiver310 mm
Weight receiver2.9 kg
Connections receiver4 x XLR, bal.,1 x 6.3 mm jack, unbal.
EAN code4007754223521
Net weight3.28 kg

Datablad txs-646

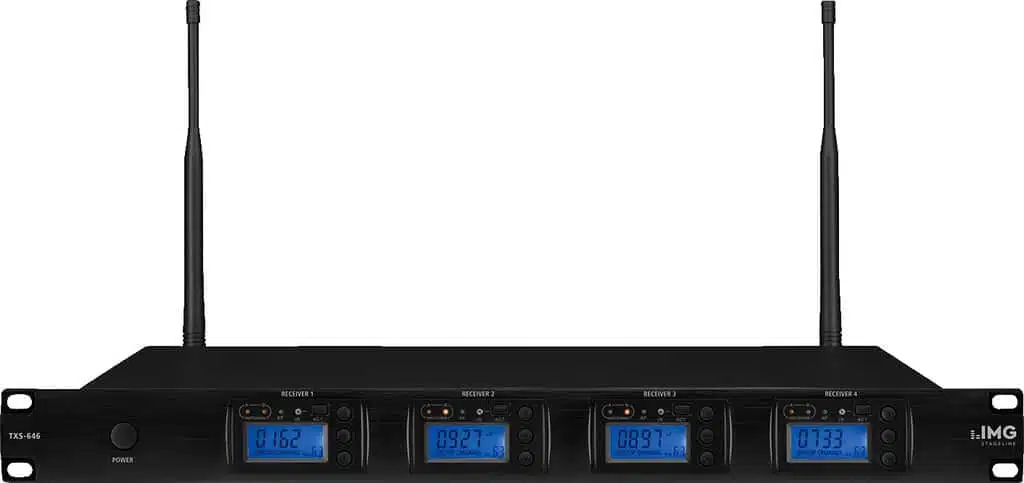

4-channel multifrequency receiver unit, with UHF PLL technology.
  • 1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 channels each)
  • ACT function for transmitting selected frequency to pocket transmitter TXS-606HSE/2, tie clip microphone transmitter TXS-606LT/2, desktop microphone transmitter TXS-606DT/2 or hand-held microphone TXS-606HT/2 via infrared signal
  • Auto-scan
  • True diversity system with removable antennas (BNC connection)
  • Volume and squelch controls for each channel
  • Each channel with LCD for indicating group/channel, antenna A/B, RF receiving level, AF audio level and additional LED display for indicating audio signal
  • XLR output for each channel, bal.
  • 6.3 mm output for mixed signal
  • 8 V supply voltage for active antennas or antenna amplifier is available
  • Robust metal housing
  • Supplied with power supply
  • 482 mm (19″) rack installation, 1 RU
